4 Lifecycle assessment for an individual house

4.1 An individual house

The objective is to perform a lifecycle assessment (LCA) of an individual house, House_1234, which is built at "Somewherestad" in Norway.

NOTE 1 To perform an LCA of an individual house is unrealistic. It is much more realistic to perform LCA of a class of house. Then, on the basis of the results of the LCA, a decision can be made whether or not to build a member of the class.

However, the definition of classes is more complicated than the definition of individuals, so we start with an individual.

The following RDF/OWL, serialised as N3, records that the thing with ID "House_1234" is a house at "Somewherestad" in Norway.

:House_1234     a                           iso15926-2:physical_object ;
                a                           construction:House ;
                SpatialRelations:locatedAt  :Somewherestad .

:Somewherestad  a                           AdministrativeGeography:AdministrativeUnit ;
                AdministrativeGeography:isContainedIn
                                            urn:iso:std:iso:3166:tech:NO .

This initial statement uses the following reference data:

NOTE It has been very difficult to find the ontologies to record this basic information. In particular:

The difficulty of making this first step illustrates why the existing standards work is almost completely useless for SMEs.

4.2 Parts of the house

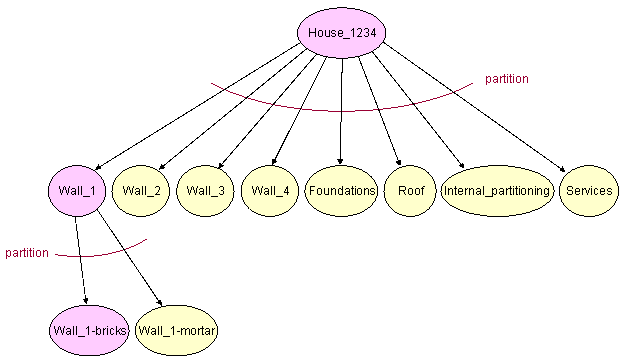

A partitioning of the house into parts is shown in Figure 1.

Parts of the house

Figure 1: Parts of the house

The parts considered in detail in this document are shown in pink.

The partitioning of the house into parts is recorded as follows:

:House_1234     lca:hasPartition  [ owl:oneOf ( :House_1234-Wall_1
                                                :House_1234-Wall_2
                                                :House_1234-Wall_3
                                                :House_1234-Wall_4
                                                :House_1234-Foundations
                                                :House_1234-Roof
                                                :House_1234-Internal_partitioning
                                                :House_1234-Services
                                              )
                                  ] .

Each part of the house, can itself be divided into parts. For House_1234-Wall_1, we have:

:House_1234-Wall_1
                a                 iso15926-2:physical_object ;
                lca:hasPartition  [ owl:oneOf ( :House_1234-Wall_1-bricks
                                                :House_1234-Wall_1-mortar
                                              )
                                  ] .

This process of dividing into parts is terminated when either:

In the example above, the bricks are supplied to the site and assembled unaltered, whilst the mortar is probably manufactured on site from sand, cement and water inputs.

4.3 Quantities of discrete items

House_1234-Wall_1-bricks is the instance of iso15926-2:physical_object that is all the bricks in House_1234-Wall_1.

Bricks are sold by number, so that we need to say:

House_1234-Wall_1-bricks is, or consists of, 2000 bricks.

The relationship is, or consists of, between House_1234-Wall_1-bricks, the class Brick and the number 2000 is difficult.

NOTE The individual House_1234-Wall_1-bricks is not a member of the class Brick, but the mereological sum of a number of bricks. In the discussion below this is called an "aggregate item", because it is the aggregate of many bricks.

There are two possible approaches:

divide the aggregate item into individuals

For this approach, the aggregate individual House_1234-Wall_1-bricks is partitioned into a set of parts. Each of the parts is a brick, and there are 2000 members of the set. This is recorded as follows:

:House_1234-Wall_1-bricks
                a                 iso15926-2:physical_object ;
                lca:hasPartition  :House_1234-Wall_1-set_of_bricks .

:House_1234-Wall_1-set_of_bricks
                rdfs:subClassOf   lca:Brick ;
                lca:numberOfMembers
                                  [ lca:decimal "2000" ] .

specify properties of the aggregate item directly

For this approach, a class it is necessary to have a class BricksInAggregate which is derived from Brick as follows:

lca:BricksInAggregate
                rdfs:subClassOf   iso15926-2:physical_object ;
                rdfs:comment      "A lot of one or more members of lca:Brick" ;
                =                 [ owl:onProperty     lca:hasPartition :
                                    owl:someValuesFrom
                                          [ owl:onProperty rdfs:subClassOf ;
                                            owl:hasValue   lca:Brick
                                          ]
                                  ] .

If bricks were sold by the tonne, then the amount in the wall could be recorded as follows:

:House_1234-Wall_1-bricks
                a                 lca:BricksInAggregate ;
                lca:hasMass       [ lca:tonneScale  [ lca:decimal  "1.0" ] ] .

The approach can be used even if brick are sold by number, by defining the property numberOfItemsInAggregate, as follows:

:House_1234-Wall_1-bricks
                a                 lca:BricksInAggregate ;
                lca:numberOfItemsInAggregate
                                  [ lca:decimal  "2000" ] .

4.4 Lifecycle activities for an individual house

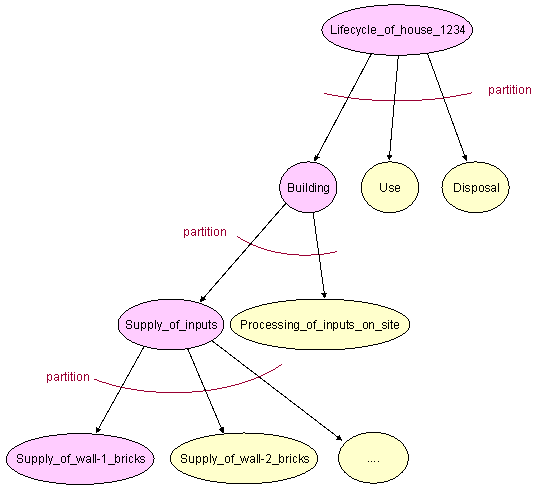

The LCA of House_1234 considers all the activities in which the house is involved throughout its life. A partitioning of these activities into parts is shown in Figure 2.

Lifecycle of the house

Figure 2: Lifecycle of the house

The partitioning of the lifecycle into parts is recorded as follows:

:Lifecycle_of_House_1234
                a                 iso15926-2:activity ;
                lca:lifecycleFor  :House_1234 ;
                lca:hasPartition  [ owl:oneOf ( :Building_of_House_1234
                                                :Use_of_House_1234
                                                :Disposal_of_House_1234
                                              )
                                  ].

The activity Building_of_House_1234 has parts as follows:

:Building_of_House_1234
                a                 iso15926-2:activity ;
                lca:hasPartition  [ owl:oneOf
                                     ( :Supply_of_inputs_for_House_1234
                                       :Processing_of_inputs_for_House_1234_on_site
                                     )
                                  ].

The parts of the activity Supply_of_inputs_for_House_1234 can be derived from the parts of the house as follows:

:Supply_of_inputs_for_House_1234
                a                 iso15926-2:activity ;
                lca:hasPartition  [ owl:oneOf ( :Supply_of_House_1234-Wall_1-bricks
                                                .....
                                              )
                                  ].

4.5 Derivation of a supply activity

The locations and amounts of material involved in the supply activities can also be derived from the parts of the house has follows:

:Supply_of_House_1234-Wall_1-bricks
                a                 lca:SupplyOfMaterialWithLcaBatteryLimits ;
                lca:materialSupplied
                                  :House_1234-Wall_1-bricks ;
                lca;receivingActivity
                                  [ lca:at :Somewherestad ] .

This supply activity can be separated into supply at the brickworks and transport, as follows:

:Supply_of_House_1234-Wall_1-bricks
                lca:hasPartition
                            [ owl:oneOf
                                ( :Supply_of_House_1234-Wall_1-bricks_at_brickworks
                                  :Transport_of_House_1234-Wall_1-bricks_to_site
                                )
                            ].

:Supply_of_House_1234-Wall_1-bricks_at_brickworks
                a                 lca:SupplyOfMaterialWithLcaBatteryLimits ;
                lca:materialSupplied
                                  :House_1234-Wall_1-bricks ;
                lca;receivingActivity
                                  lcaInfo:CollectionFromGate .

:Transport_of_House_1234-Wall_1-bricks_to_site
                a                 lca:TransportOfMaterialWithLcaBatteryLimits ;
                lca:materialSupplied
                                  :House_1234-Wall_1-bricks ;
                lca;receivingActivity
                                  [ lca:at :Somewherestad ] ;
                lca;sourceOfMaterial
                                  [ lca:at :Oslo ] .

From the published LCA data, it is desired to calculate that:

:Supply_of_House_1234-Wall_1-bricks_at_brickworks
                lca;hasAggregateOutput
                   [ lca:aggregationClassOfMaterial     lcaInfo:CarbonDioxide ;
                     lca:aggregationReceivingActivity   lcaInfo:Atmosphere ;
                     lca:hasMass  [ lca:kilogramScale [ lca:decimal "1300.0" ] ]
                   ] .

4.6 Interface to published LCA data

LCA data may be published for the classes of activity:

The class urn:lca:lcainfohub:process:brick can be defined as follows:

urn:lca:lcainfohub:process:brick
                =  [ owl:intersectionOf
                      ( lca:SupplyOfMaterialWithLcaBatteryLimits ;
                        [ owl:onProperty    lca:materialSupplied ;
                          owl:allValuesFrom lca:BricksInAggregate
                        ]
                      )
                   ] .

NOTE In this definition the class lca:BricksInAggregate is required because a member supplies a lot of any number of bricks.

The first stage in calculating the environmental impact of the supply for the house, is to classify the supply activities as follows:

:Supply_of_House_1234-Wall_1-bricks_at_brickworks
                a                 urn:lca:lcainfohub:process:brick .

:Transport_of_House_1234-Wall_1-bricks_to_site
                a                 urn:lca:lcainfohub:process:transport_by_road .

The amounts of CO2 emission for the supply for the house is then calculated from:

4.7 Emissions for reference magnitudes

The emissions are specified for all members of urn:lca:lcainfohub:process:brick which have a reference amount. The emissions of 100 kg of CO2 into the atmosphere for a supply of the reference amount can be recorded as follows:

urn:lca:lcainfohub:process:brick:reference
                rdfs:subClassOf   urn:lca:lcainfohub:process:brick ;
                rdfs:subClassOf
                  [ owl:onProperty    lca:hasAggregateOutput ;
                    owl:someValuesFrom
                      [ owl:intersectionOf
                         ( [ owl:onProperty  lca:aggregationClassOfMaterial ;
                             owl:hasValue    lcaInfo:CarbonDioxide
                           ]
                           [ owl:onProperty  lca:aggregationReceivingActivity ;
                             owl:hasValue    lcaInfo:Atmosphere
                           ]
                           [ owl:onProperty  lca:materialSupplied ;
                             owl:allValuesFrom
                                 [ owl:onProperty  lca:hasMass ;
                                   owl:hasValue
                                       [ lca:kilogramScale
                                             [ lca:decimal "100.0" ]
                                       ]
                                 ]
                         )
                     ]
                 ] .

The reference amount is the supply of a lot of 1000 bricks. As discussed in Quantities of discrete items, there are different ways of specifying the reference amount, as follows:

divide the aggregate item into individuals

:urn:lca:lcainfohub:process:brick:reference
                =  [ owl:intersectionOf
                       ( urn:lca:lcainfohub:process:brick
                         [ owl:onProperty lca:materialSupplied ;
                           owl:allValuesFrom
                             [ owl:onProperty lca:hasPartition ;
                               owl:someValuesFrom
                                  [ owl:intersectionOf
                                     ( [ owl:onProperty rdfs:subClassOf ;
                                         owl:hasValue   lca:Brick
                                       ]
                                       [ owl:onProperty lca:numberOfMembers
                                         owl:hasValue   [ lca:decimal "1000" ]
                                       ]
                                     )
                                  ]
                             ]
                         ]
                       )
                    ] .
 .

NOTE This approach is complicated, so the next may be best.

specify properties of the aggregate item directly

urn:lca:lcainfohub:process:brick:reference
                =  [ owl:intersectionOf
                       ( urn:lca:lcainfohub:process:brick
                         [ owl:onProperty lca:materialSupplied ;
                           owl:allValuesFrom
                             [ owl:onProperty lca:numberOfItemsInAggregate ;
                               owl:hasValue   [ lca:decimal "1000" ]
                             ]
                         ]
                       )
                    ] .
 .
